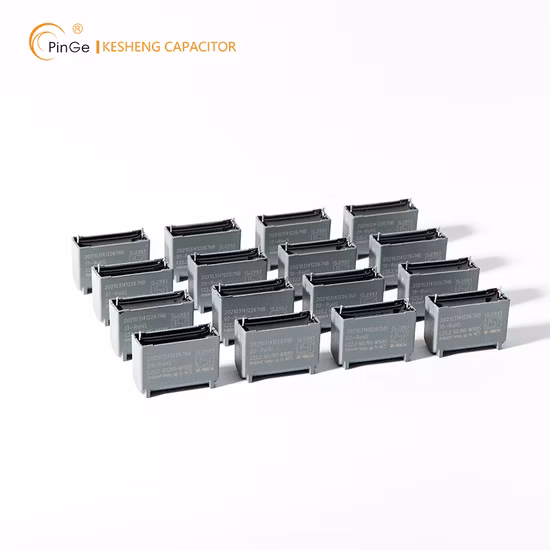

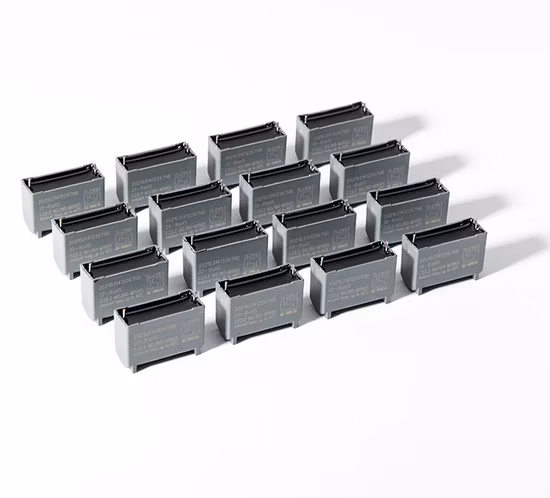

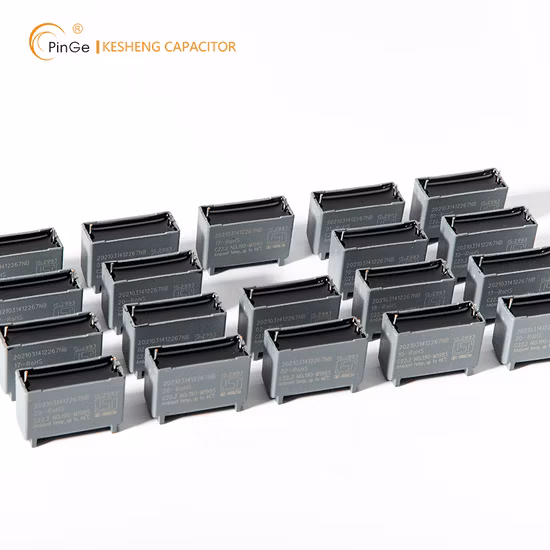

Factory Ks Pinge Film Capacitor Cbb61 Fan Motor Start Capacitor

Basic Info

Model NO.	Cbb61 Capacitor
Capacitance	1-30UF
Manufacturing Material	Polypropylene
Usage	AC Motor Starting and Run
Model	Cbb61 Pin Type Capacitor
Rated Voltage	250V.AC~450V.AC
Capacitance Range	1UF~30UF
Certificate	UL,TUV, Bis, CQC,Bis
Operation Class	Classa:30,000hrs, Classb:10,000hrs, Classc:3000hr
Tolerance	±5%
Protection Class	S0,S3
Terminal	187#(1+1/2+2), 250#(1+1/2+2).
Operating Temp.	-25~70ºC,-40~70ºC,-40~85ºC,
Shape	Square Box
Supplier Type	Original Manufacturer
Transport Package	100PCS/Bag
Specification	EN60252-1: 2001 GB/T3667.1ul
Trademark	PinGe
Origin	Foshan, China
HS Code	85322590
Production Capacity	50000PCS/Day

Packaging & Delivery

Package size per unit product 42.00cm * 35.00cm * 35.00cm Gross weight per unit product 30.000kg

Product Description

Brand	PinGe	Model	CBB61 Lead Wire Type Capacitor
Rated Voltage	250V.AC~450V.AC	Capacitance Range	1uF~30uF
Certificate	cUL,TUV, BIS, CQC,BIS	Application	fan,motor,pump,rangehood...etc
Type	Dry Type Metalized Polypropylene Film Capacitor	Operation Class	ClassA:30,000hrs, ClassB:10,000hrs, ClassC:3000hrs.
Tolerance	±5%	Protection Class	S0,S3
Terminal	Lead Wire (length can be adjusted)	Operating TEMP.	-25~70ºC,-40~70ºC,-40~85ºC,-40~105ºC
Package Type	Carton Box with inner tray	Shape	Box
Supplier Type	Original Manufacturer	Place of Origin	Guangdong, China

Product characteristics
Non-inductance winding structure
Excellent self-healing performance
Small equivalent series resistance
Fast heat dissipation,Low temperature rise
Corrosion resistant,Stable performance,high reliability
, Safety, fire and explosion protection

It is mainly used for fan and motor start and run, household appliance motor start and run, cbb61 capacitor with UL, TUV, CQC, ISO certificate.

Features and uses

The capacitor has advantages of low dissipation factor,,high insulation resistance,good self-healing character,anti-striking current,strong over-carrier capacity and steady electric performance,etc.In generally,it uses rectangular flame retardant shell and epoxy resin to seal.It is applied in electric fan, exhaust fan electric pump,and electric sewing machine,etc.It is helpful for motor's starting and running.
